Product Details
It is mainly used for cutting pieces in conventional perforation in the automotive interior industry mediumbatch production and processing, and personalized pattern perforation; the machine has high perforation eficiency, large output, stable performance, and is easy to use ; it is suitablefor leather factory, leather traders, car seat factory, and perforation processing factory.

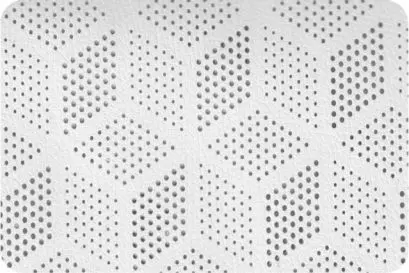

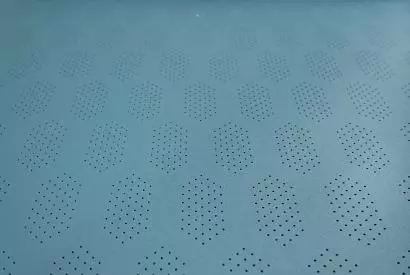

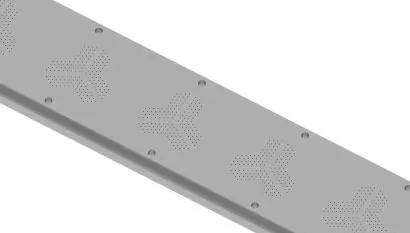

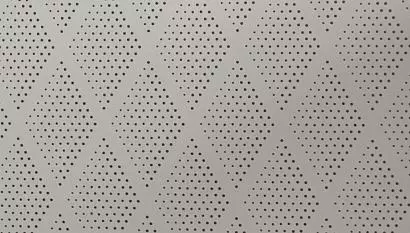

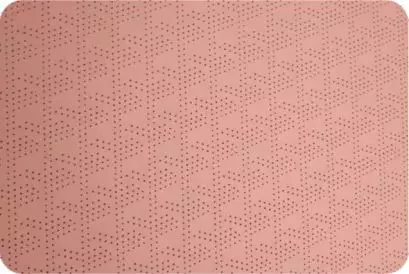

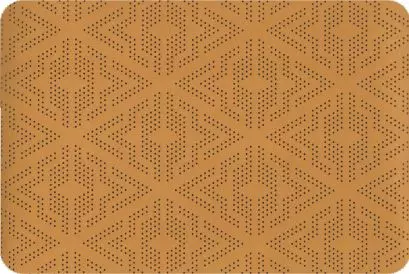

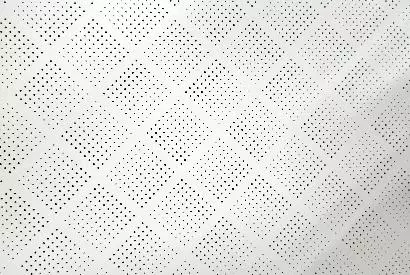

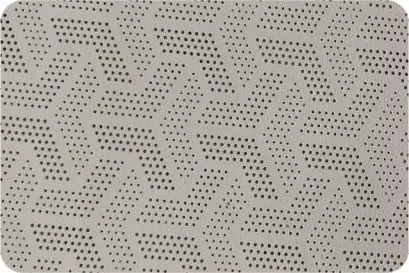

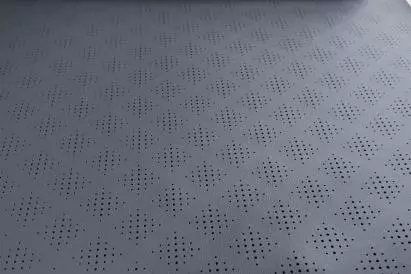

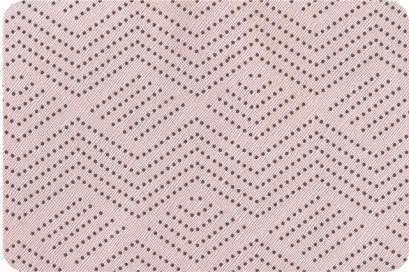

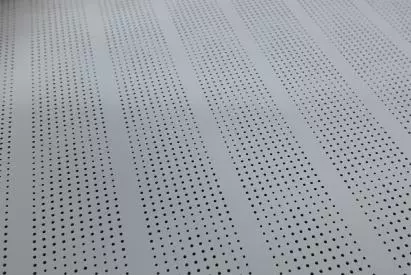

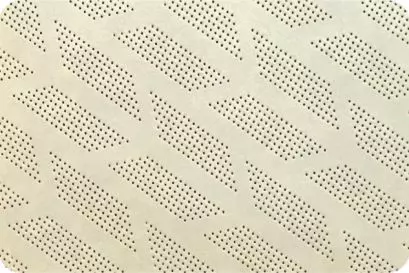

Perforation sample
Machine parameters

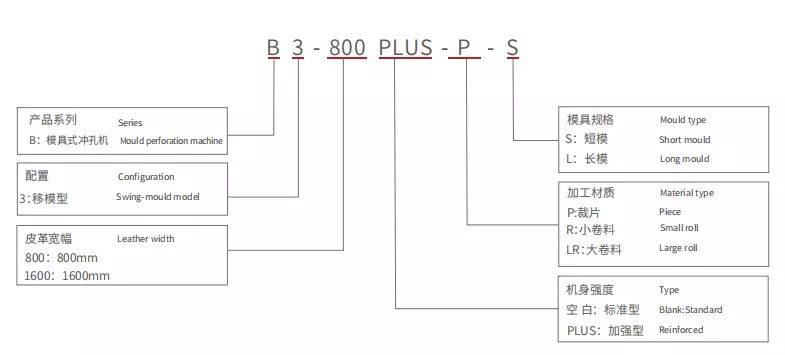

| 型号 Model |
B3-800 | B3-800PLUS | B3-1600-P | B3-1600-R | B3-1600-LR |
| 加工材质 Material type |
裁片 Piece |
裁片 Piece |
裁片 Piece |
小卷料 Small roll |
大卷料 Large roll |
| 最大皮革宽幅(mm) Max. leather width |
800 | 800 | 1600 | 1600 | 1600 |
| 最大速度(次/分钟) Max.perforation speed (strokes/min) |
180 | 180 | 180 | 360 | 360 |
| 材料厚度(mm) Material thickness |
0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| 最多可装冲针数量 Number of perforation needles |
640 | 1920 | 1920 | 1920 | 1920 |
| 机器功率(kW) Machine power |
3P/380VAC/4.5kW | 3P/380VAC/6kW | 3P/380VAC/8kw | 3P/380VAC/8kW | 3P/380VAC/10kw |
| 机器尺寸(mxmxm) Machine size |
2.90x1.37x1.40 | 3.15x1.85x1.80 | 3.05x2.60x2.00 | 6.0x2.80x2.40 | 11.0x2.90x2.40 |
| 木箱尺寸(mxmxm) Wood packing size |
3.0x1.47x1.60 | 3.25x1.95x2.0 | / | / | / |
| 机器净重(kg) Machine net weight |
1750 | 4650 | 5500 | 6900 | 7950 |
