Product Details
It is mainly for mass production, personalized pattems processing ofsheet pieces (PVC, microfiber, artificialleather,genuine leather,etc.)in the automotive interior industry.
The machine has highperforation efficiency and stable performance, and is easy to operate.
The machine is suitable for leather factories,leather traders,car seat cover factories,and dedicated Perforating workshops.

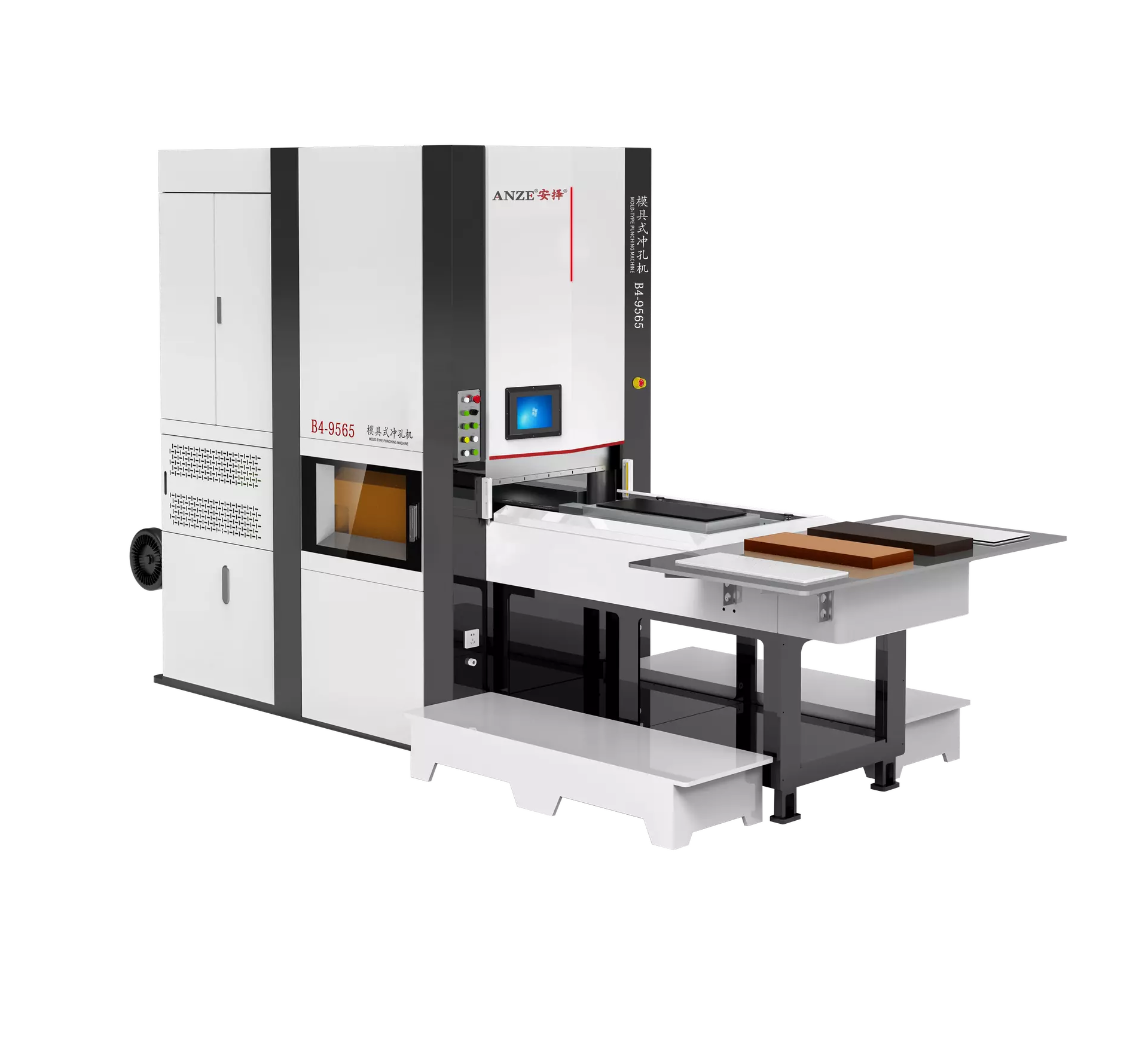

B4 SERIES DIE PERFORATION MACHINE
| Machine Features |

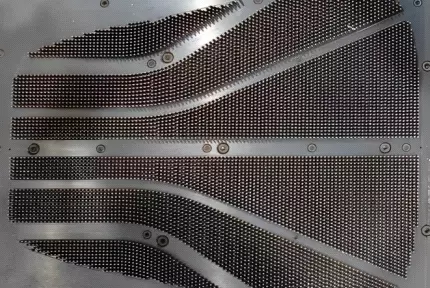

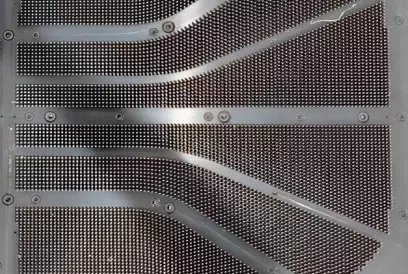

| ● The whole versionof the die, the pattern is determined bythe die. |
| ● It can punch30000 circle holes with o1.0mm at one time. |
| ● The special transportplatform handles the incoming and outgoing of leather, ensuring personnel safety. |
| ● The die has aservice life of 300,000 times. |
| ● The depth of the die can be adjusted automatically, and the fuly automaticadjustment of the life cycle ofthe PERFoRATioN needle. |
| ● The die with leather positioning function. |
| ● The machine is equipped with paper rack and leather rack, the scene is clean and refreshing. |
| ● The new noise technology developed canensure that the noise lowerthan 75dB. |

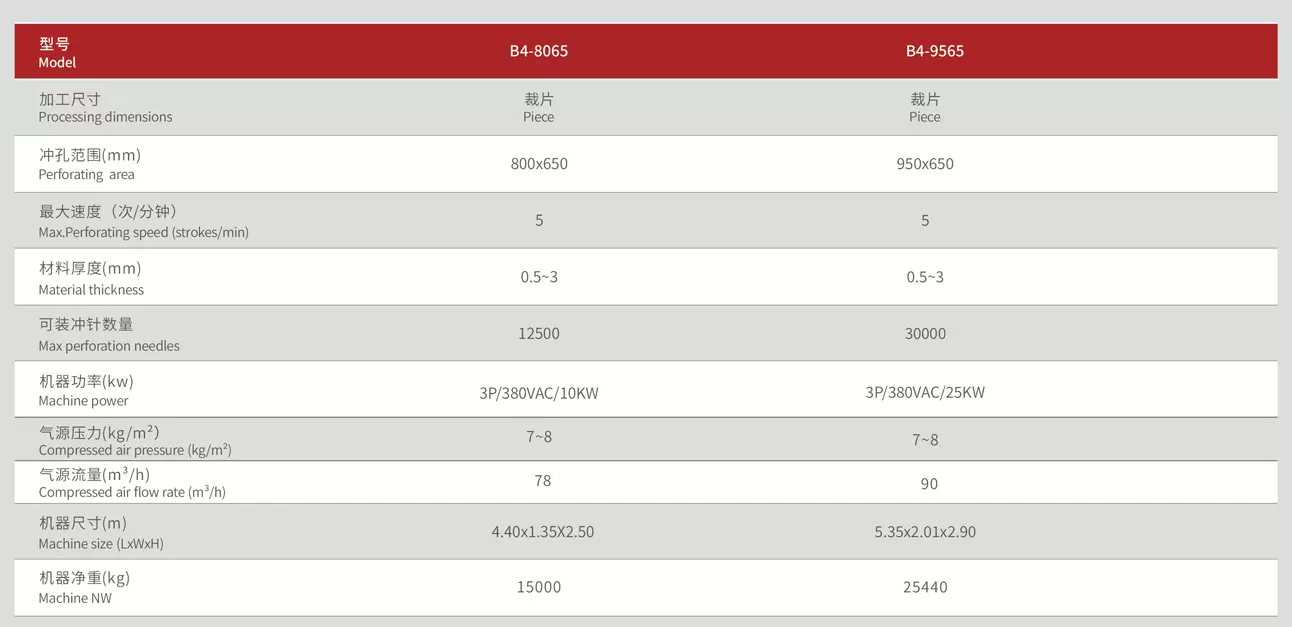

Machine parameters

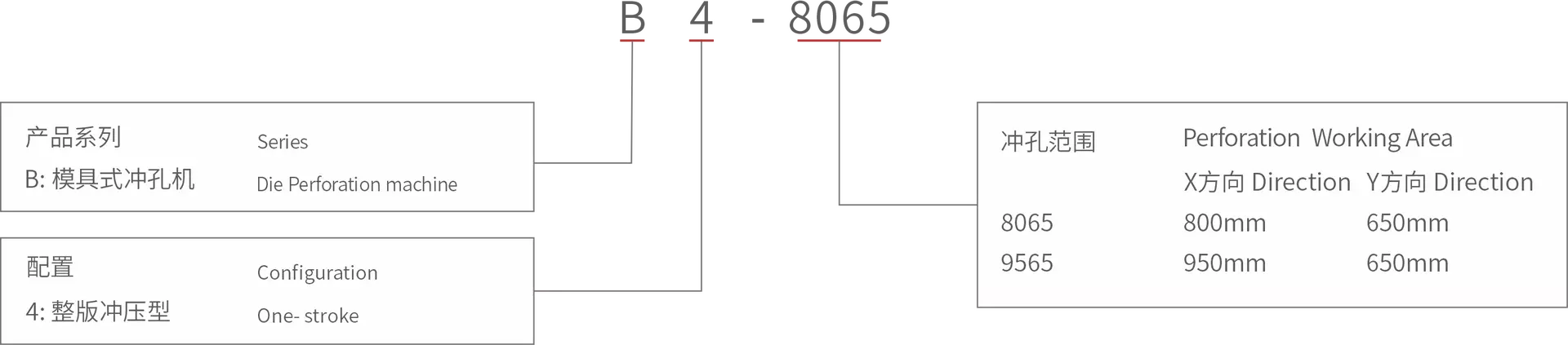

| Model | B4-8065 | B4-9565 |
| Processing dimensions | Piece | Piece |
| Perforating area | 800x650 | 950x650 |
| Max perforation speed (strokes/min) | 5 | 5 |
| Material thickness(mm) | 0.5~3 | 0.5~3 |
| Max perforation needles | 12500 | 30000 |
| Machine power (kw) | 3P/380VAC/10KW | 3P/380VAC/25KW |
| Compressed air pressure (kg/m²) | 7~8 | 7~8 |
| Compressed air flow rate (m³/h) | 78 | 90 |
| Machine size (LxWxH) | 4.40x1.35X2.50 | 5.35x2.01x2.90 |
| Machine NW(kg) | 15000 | 25440 |
