Product Details
It is suitable for car seat covers, headrest covers, steering wheel covers, sofas, shoe uppers, bags, etc.
It is easy to operate with stable performance and high efficiency.

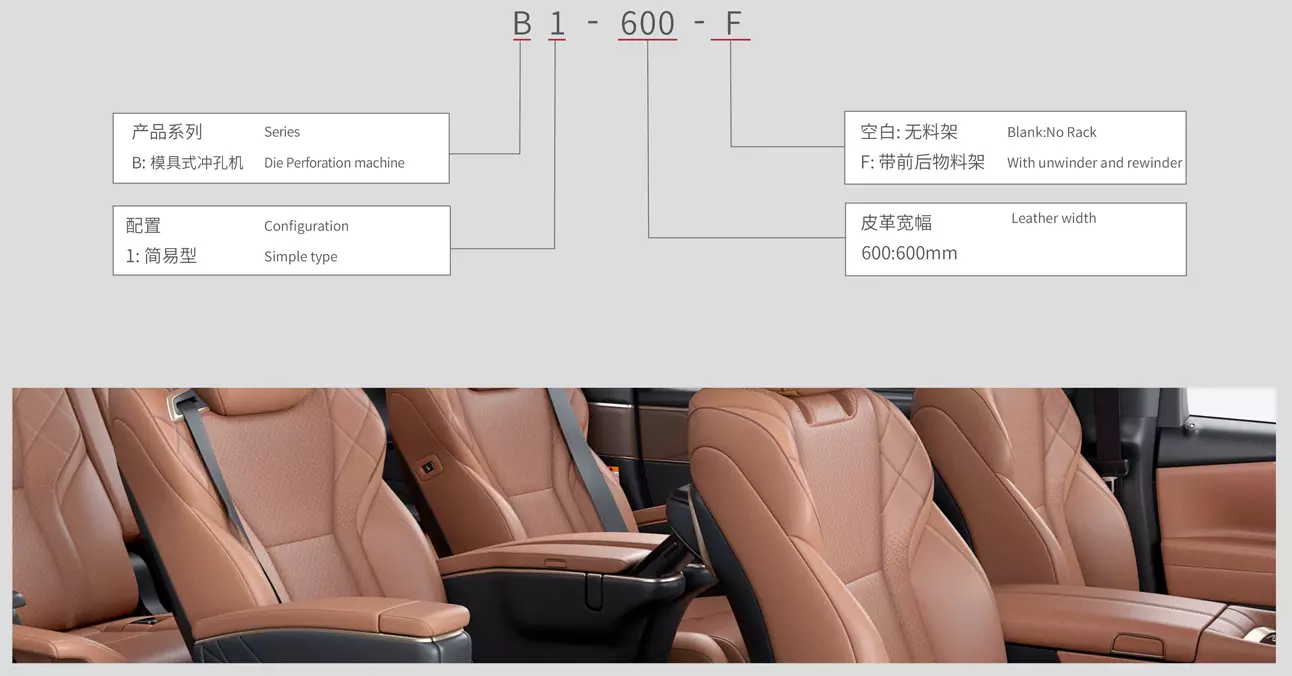

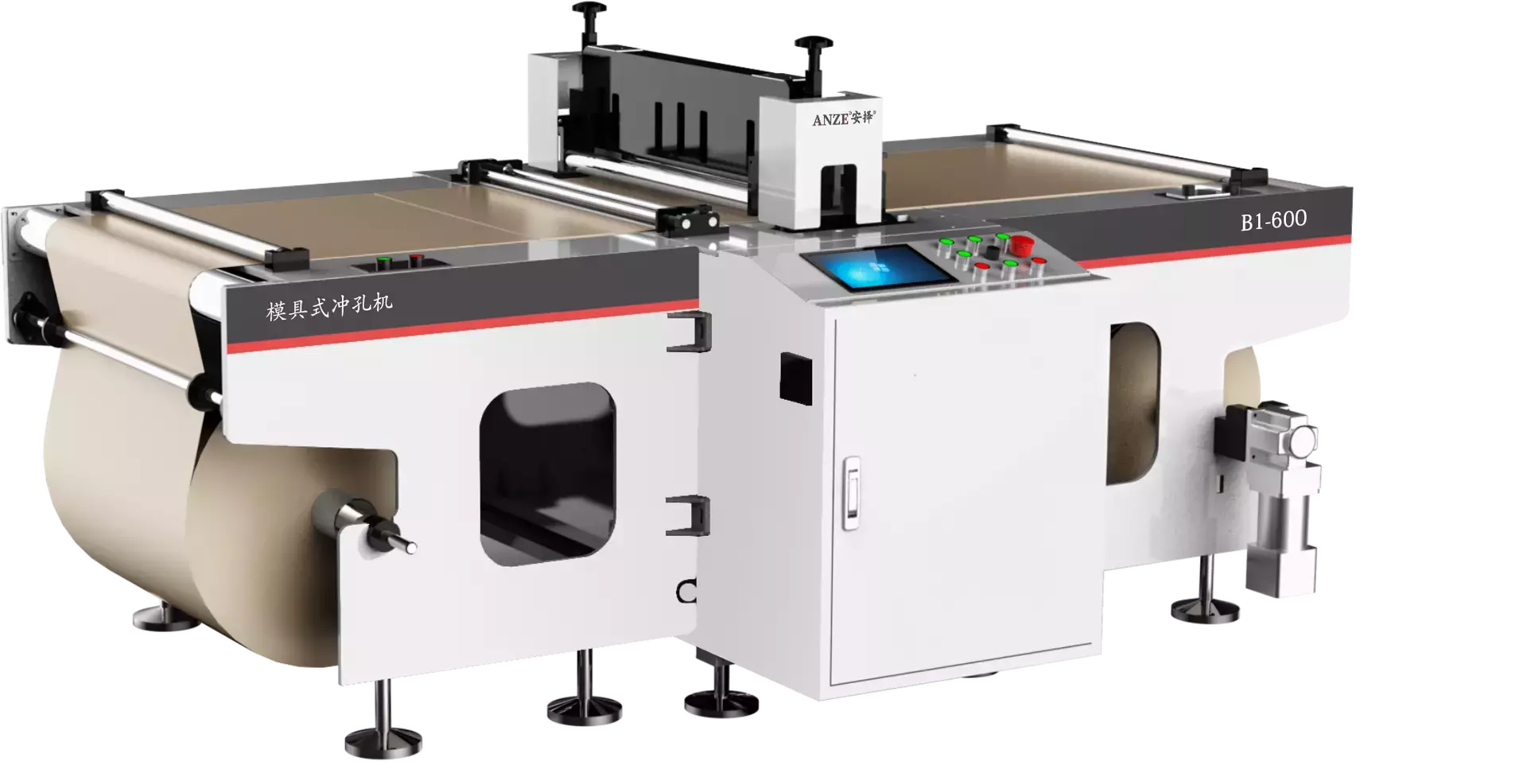

B1 SERIES DIE PERFORATION MACHINE
| Machine Features |
| ● Machine use CNC dies to ensuring high precision, also easy to disassemble. |
| ● Servo motors ensure material feedingprecision. |
| ● Material feeding is simply adjusted through touch screen, not mechanically. |
| ● Automatic paper rewinding. |
| ● The die depth is easily adjusted through the manual operation. |

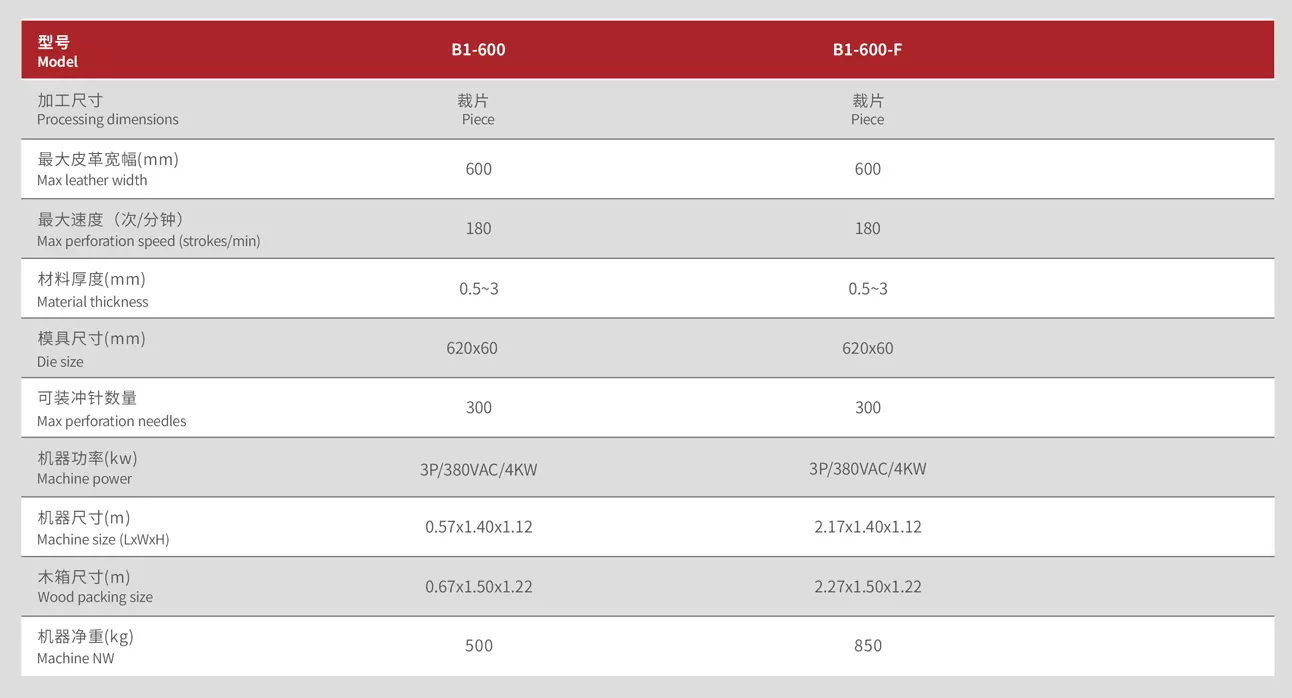

Products Description

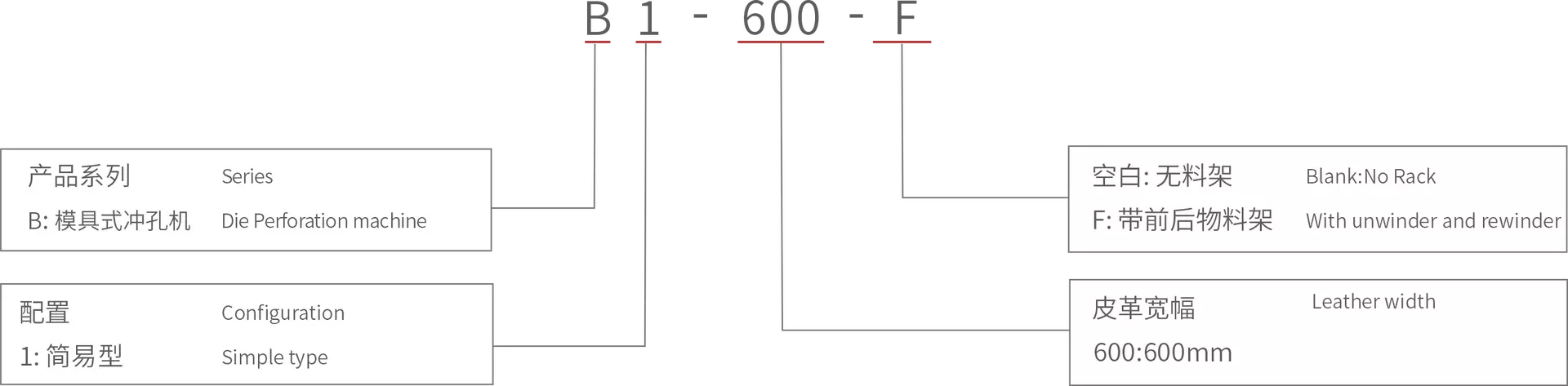

| Model | B1-600 | B1-600-F |
| Processing dimensions | Piece | Piece |
| Max leather width (mm) | 600 | 600 |
| Max perforation speed (strokes/min) | 180 | 180 |
| Material thickness | 0.5~3 | 0.5~3 |
| Die size (mm) | 620x60 | 620x60 |
| Max perforation needles | 300 | 300 |
| Machine power (kw) | 3P/380V AC/4KW | 3P/380V AC/4KW |
| Machine size (LxWxH) | 0.57x1.40x1.12 | 2.17x1.40x1.12 |
| Wood packing size(m) | 0.67x1.50x1.22 | 2.27x1.50x1.22 |
| Machine NW(kg) | 500 | 850 |
