Product Details
It is specially designed for the automotive interior industry, suitable for multi-hole, personalized irregular Perforating processing.
It can punch to different shapes of patterns in same leather piece.
It is suitable for the car seat factories and leather factories.

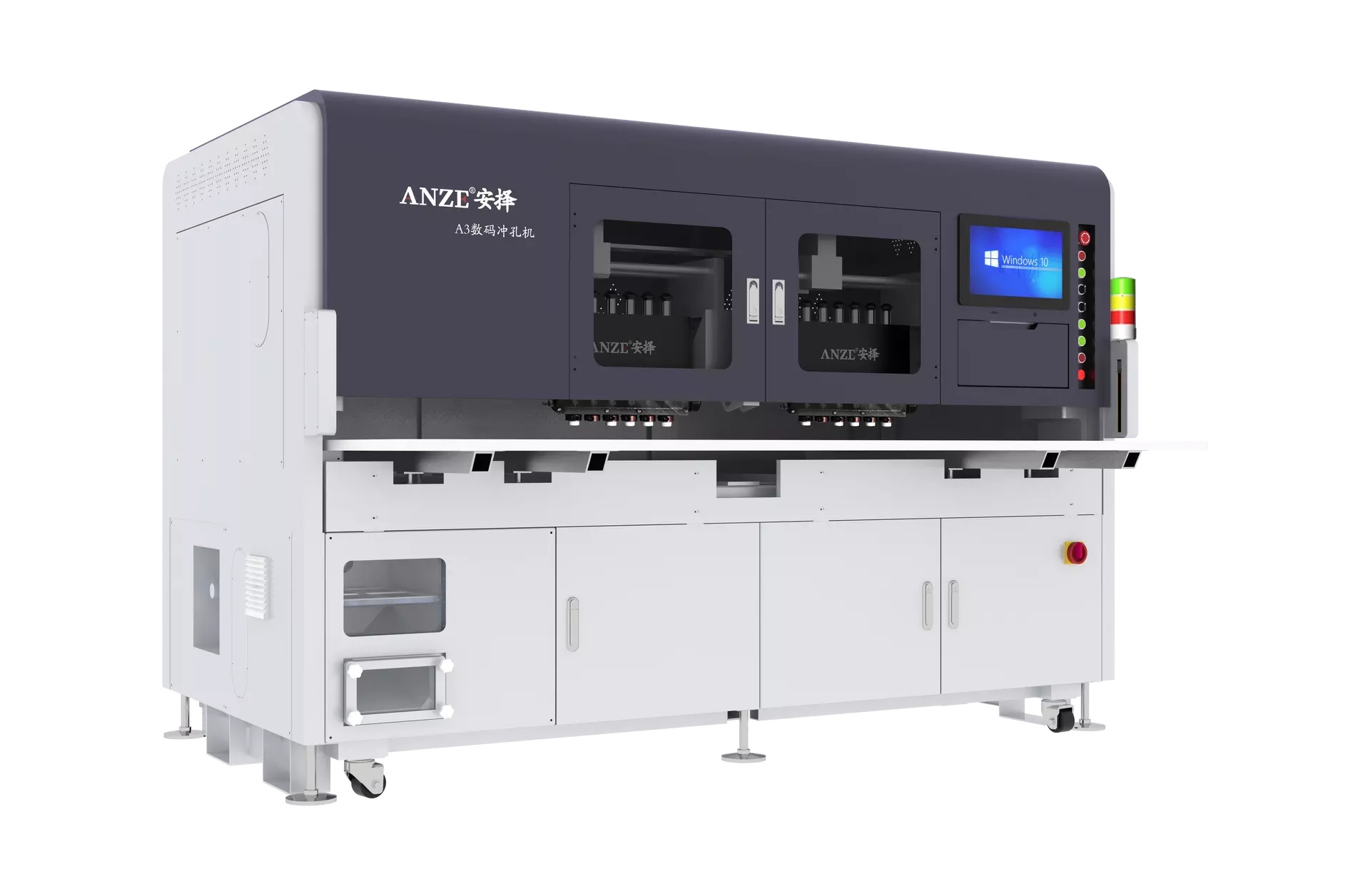

A3 SERIES CNC LEATHER PERFORATION MACHINE
| Machine Features |
| ● The software has the powerful function(GP Mode)of divided perforation whichincreases the perforation efficiency greatly. |
| ● Combinationwith single pin and multi pins, increase double efficiency. |
| ● Low noise technology (LNT) keeps the machine noise below 75db. |
| ● The CNC-made machine parts ensure high perforation precision. |
| ● Light curtain is equipped to ensure the safety of the operator. |
| ● Personalized perforation according to the drawings. |
| ● Standalone version layout have been developed for seat covers, leg rests, door panels, and audio headrests in car interiors. |
| ● Rotary perforationheads lead to any combination of holes, eachperforation head can rotate for 360. |
| ● Unique function of break point resume. |
| ● Auto waste collection device. |

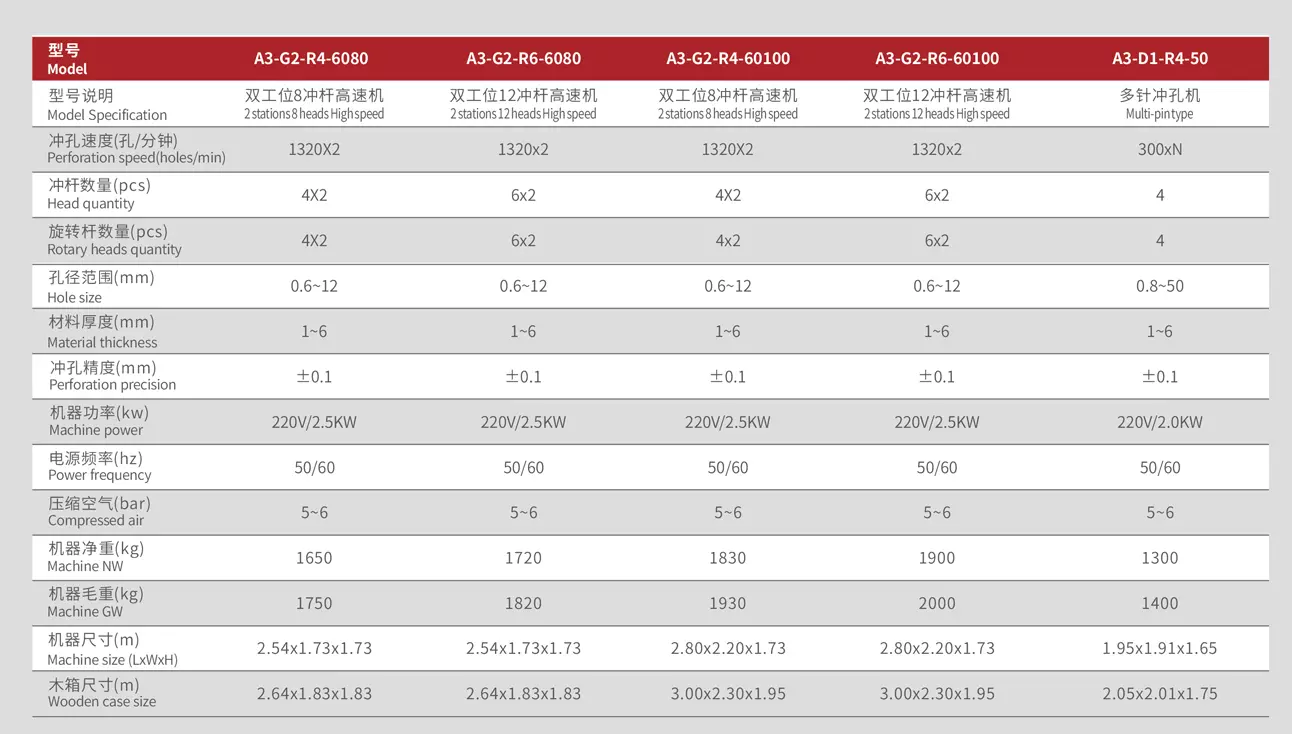

Machine parameters

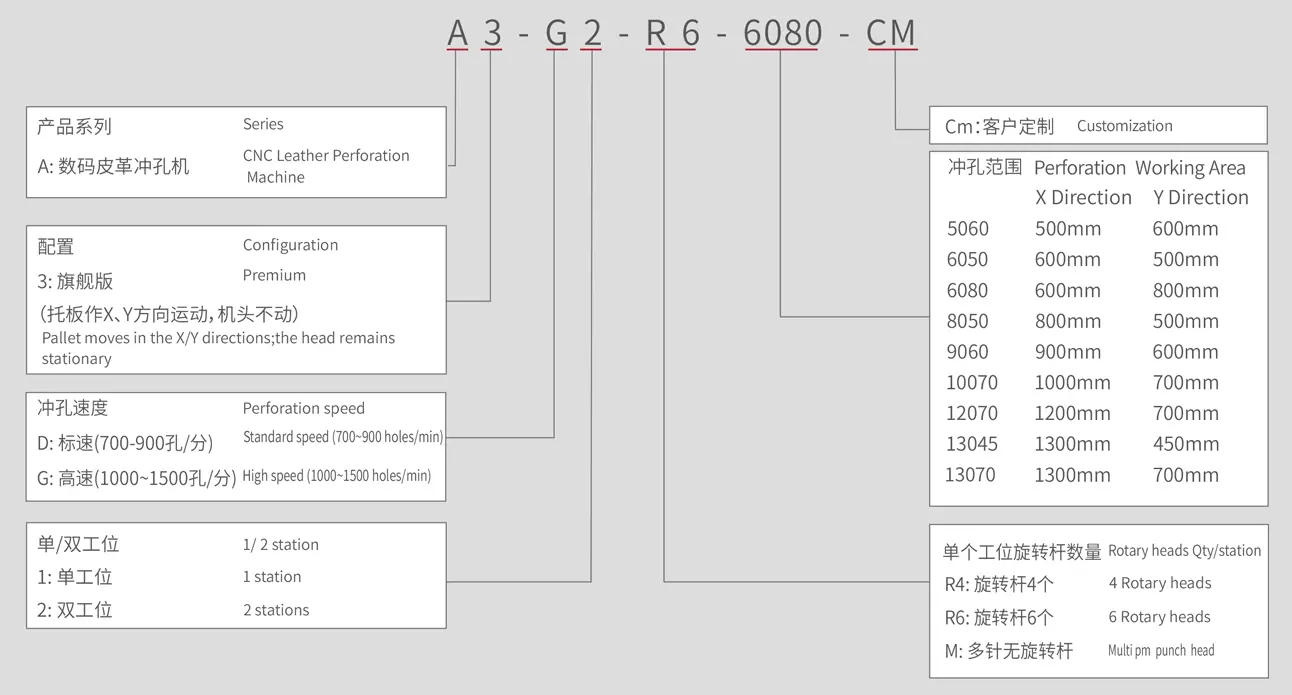

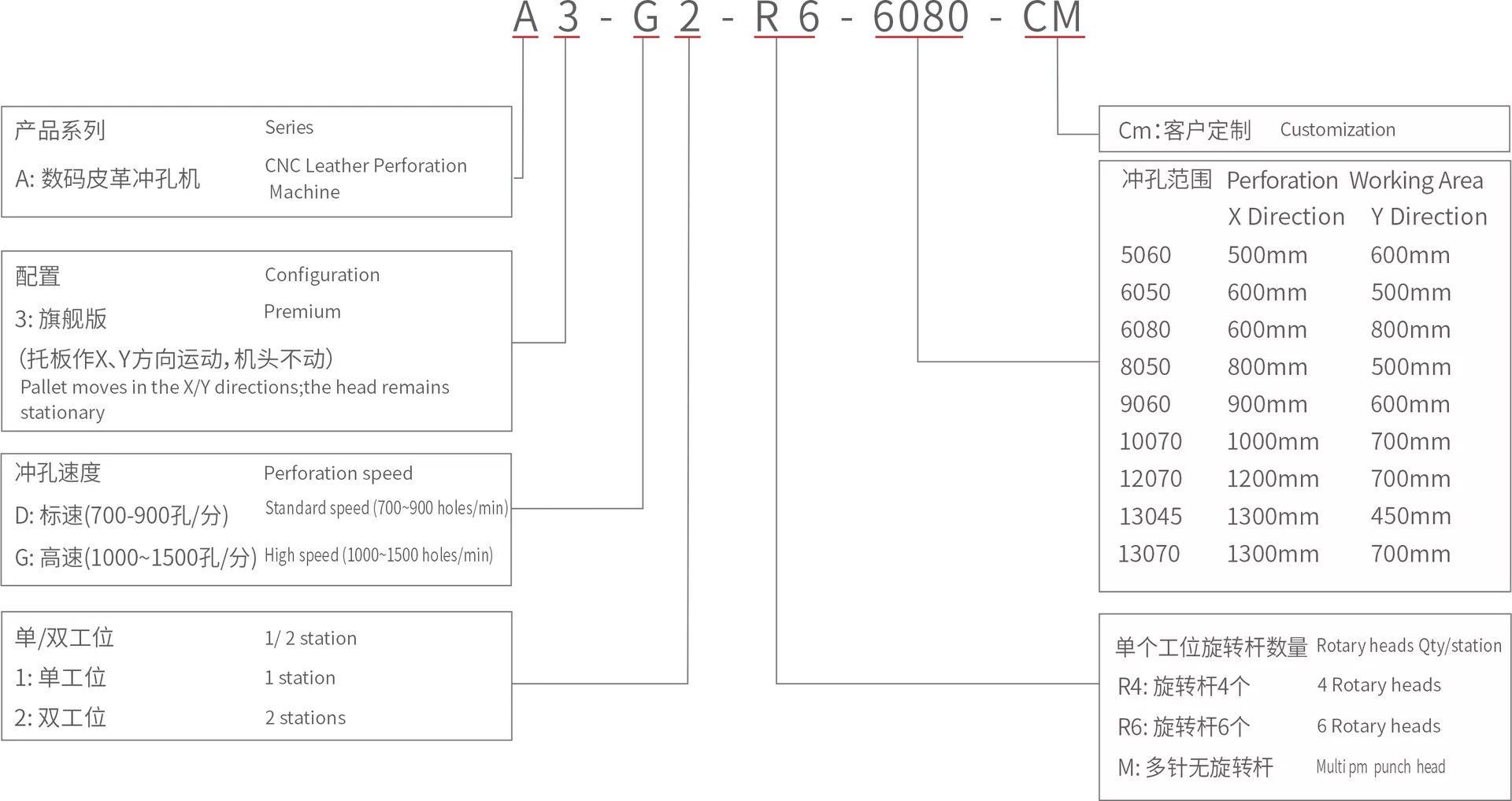

| Model | A3-G2-R4-6080 | A3-G2-R6-6080 | A3-G2-R4-60100 | A3-G2-R6-60100 | A3-D1-R4-50 |
| Model specification | 2station8headsHighspeed | 2station12headsHighspeed | 2station8headsHighspeed | 2station12headsHighspeed | Multi-pintype |
| Perforation speed (holes/min) | 1300X2 | 1300X2 | 1300X2 | 1300X2 | 300XN |
| Head quantity (pce) | 4X2 | 6X2 | 4X2 | 6X2 | 4 |
| Rotary heads quantity (pce) | 4X2 | 6X2 | 4X2 | 6X2 | 4 |
| Hole size (mm) | 0.6~12 | 0.6~12 | 0.6~12 | 0.6~12 | 0.6~12 |
| Material thickness (mm) | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 |
| Perforation precision (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Machine power (kw) | 220V/2.5KW | 220V/2.5KW | 220V/2.5KW | 220V/2.5KW | 220V/2.0KW |
| Power frequency (hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Compressed air (bar) | 5~6 | 5~6 | 5~6 | 5~6 | 5~6 |
| Machine NW (kg) | 1650 | 1720 | 1830 | 1900 | 1300 |
| Machine GW (kg) | 1750 | 1820 | 1930 | 2000 | 1400 |
| Machine size (LxWxH) | 2.54x1.73x1.73 | 2.54x1.73x1.73 | 2.80x2.20x1.73 | 2.80x2.20x1.73 | 1.95x1.91x1.65 |
| Wooden case size (m) | 2.64x1.83x1.83 | 2.64x1.83x1.83 | 3.00x2.30x1.95 | 3.00x2.30x1.95 | 2.05x2.01x1.75 |
